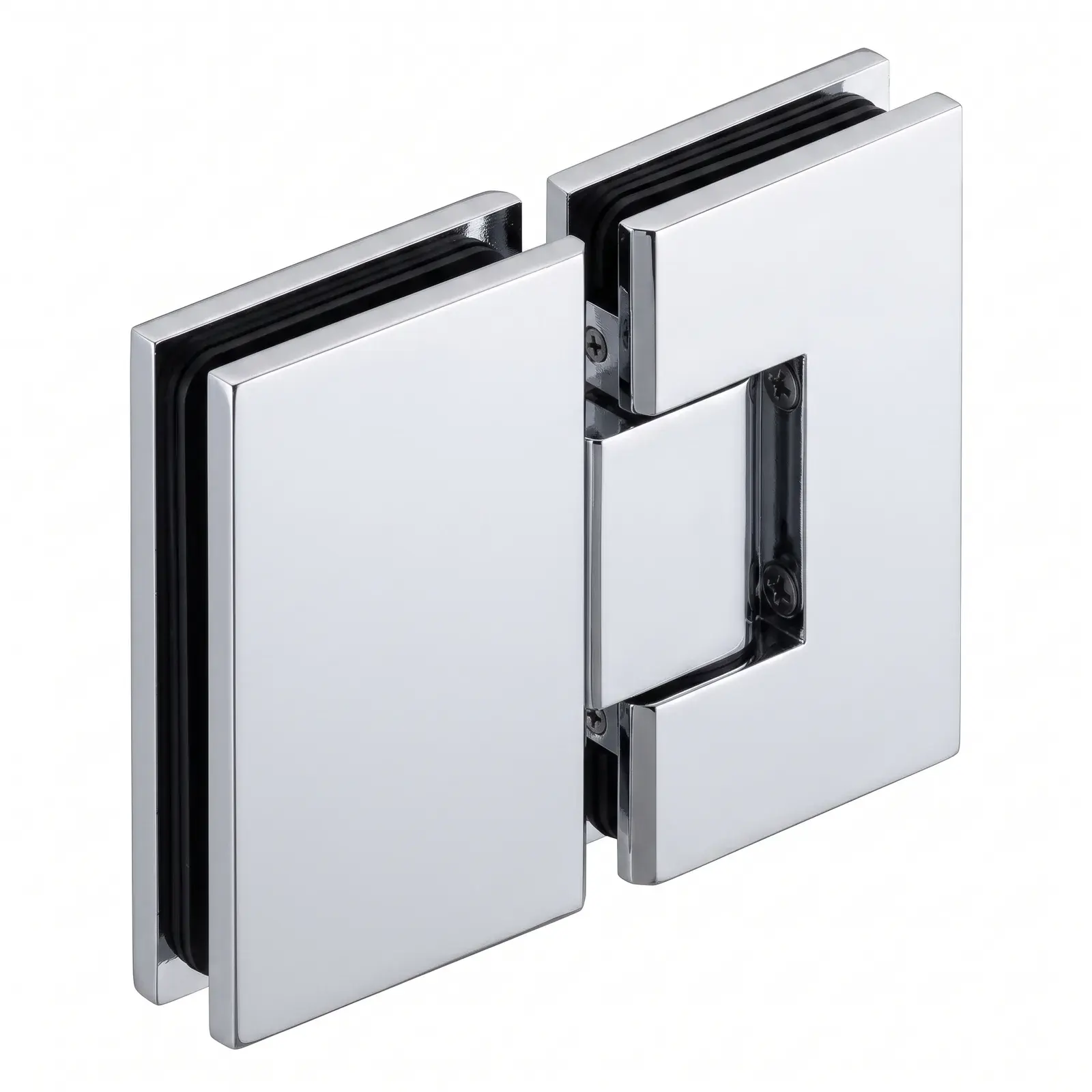

Heavy Duty Glass to Glass 180° Hinge

Heavy-Duty 180° Glass-to-Glass Hinge

Specifications:

• Weight: 3.21 lbs

• Package Size: 5.15 × 4.4 × 1.75 inches

• For Glass Thickness: 3/8" (10 mm) – 1/2" (12 mm)

• Maximum Door Capacity (2 hinges): 110 lbs, 36" width (49.9 kg, 914.4 mm)

• Maximum Door Capacity (3 hinges): 140 lbs, 36" width (63.5 kg, 914.4 mm)

• Hinge Plate Width: 2-1/4" (57.15 mm)

• Hinge Plate Height: 3-15/16" (100.01 mm)

• Self-Centering: At 25 degrees from the closed position. Equipped with a reversible 5-degree pivot pin.

• Material: Solid Brass

• For Use With: Tempered glass only

• Includes: Screws and gaskets
