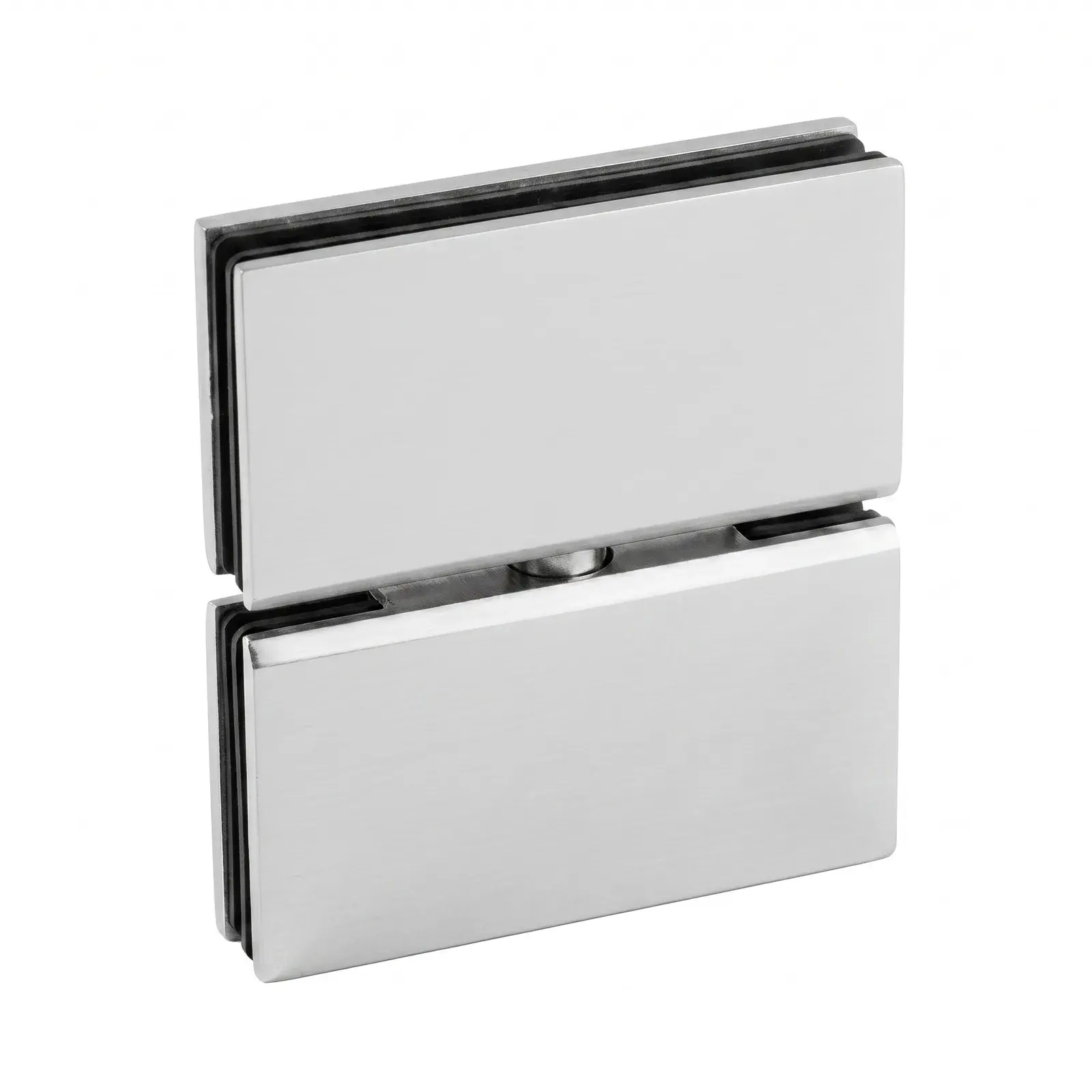

180° Glass-to-Glass Pivot Hinge

180° Glass-to-Glass Pivot Hinge

Specifications:

• Weight: 2.26 lbs

• Package Size: 4.85 × 4 × 1.75 inches

• For Glass Thickness: 3/8" (10 mm) – 1/2" (12 mm)

• Capacity: 100 lbs, 31" width (45.4 kg, 787.4 mm)

• Self-Closing: Self-centering from 15 degrees of the closed position

• Material: Solid forged brass

• For Use With: Tempered glass only

• Includes: Screws and gaskets

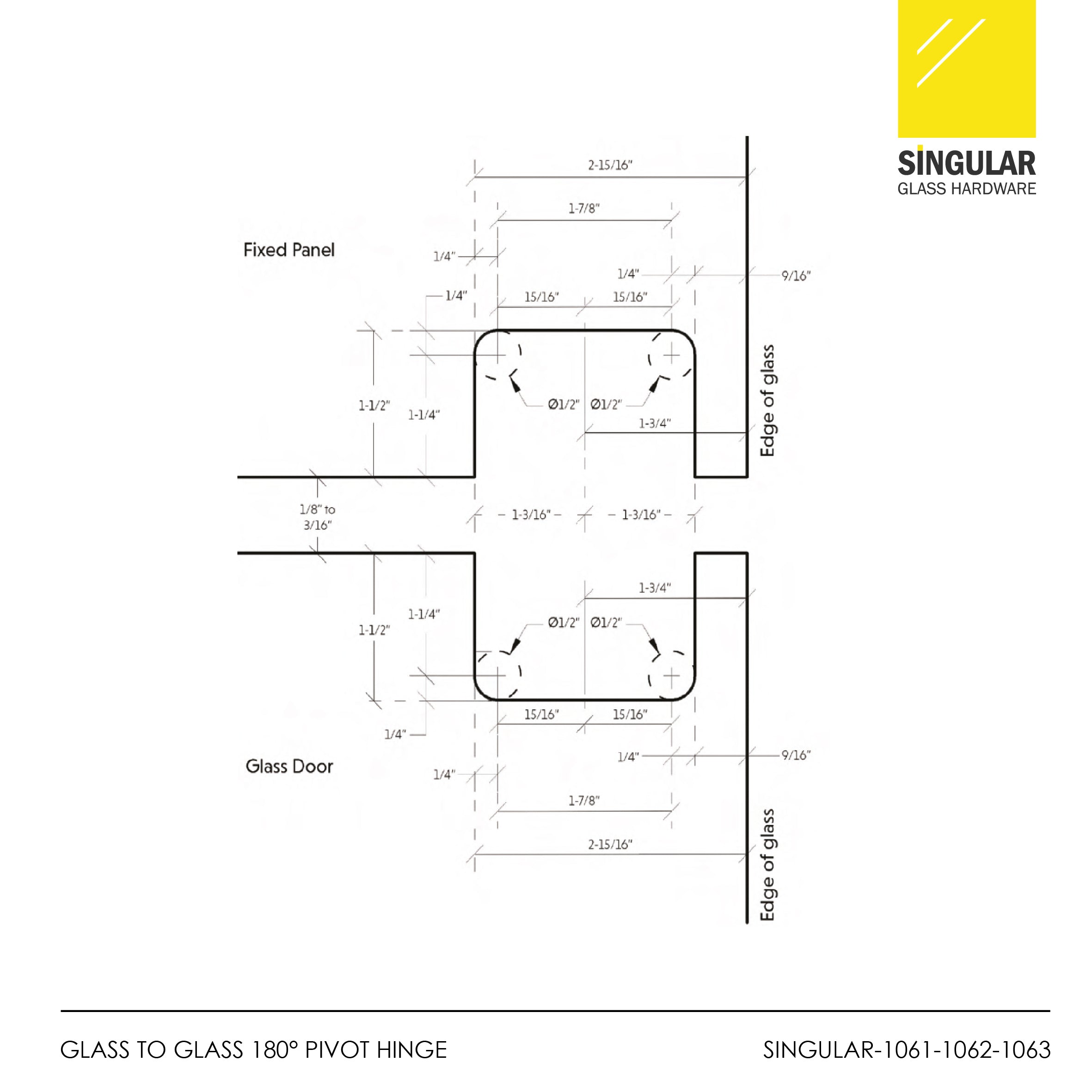

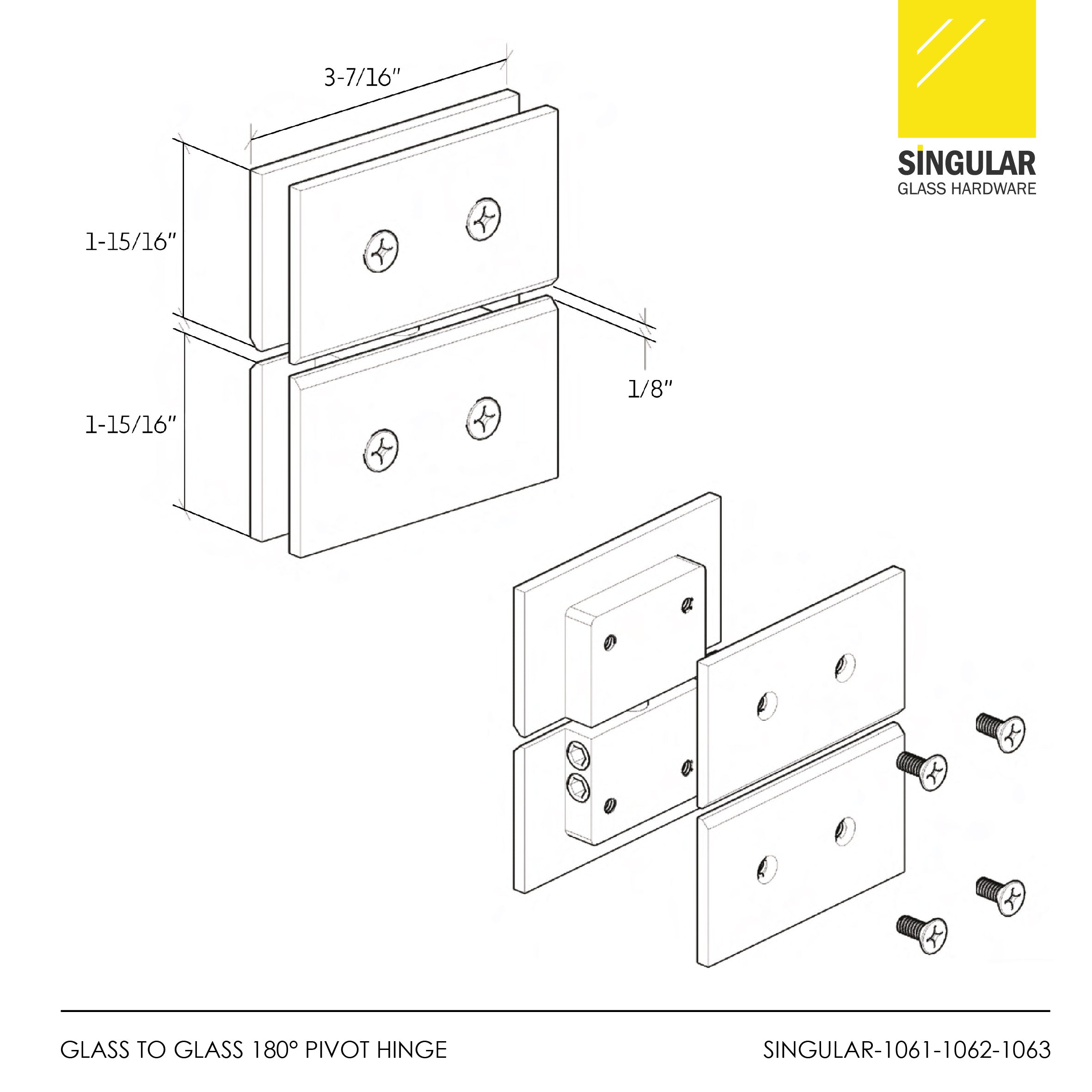

Download Technical Drawings
