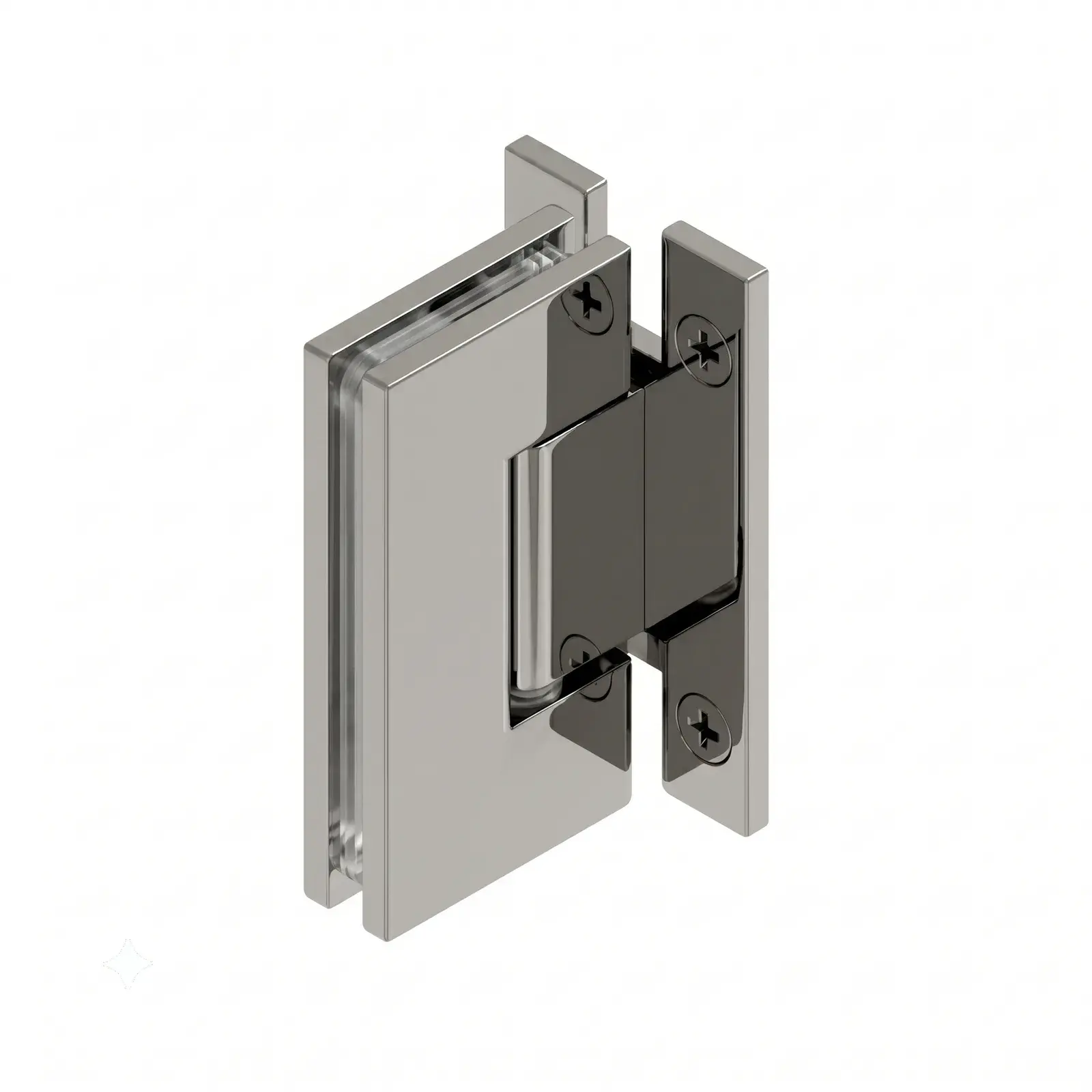

Heavy Duty "H" Back Plate Hinge

Heavy Duty “H” Back Plate Hinge

Specifications:

• Weight: 2.01 lbs

• Package Size: 4.5 × 2.5 × 3.25 inches

• Glass Thickness: 3/8" (10 mm) – 1/2" (12 mm)

• Maximum Door Capacity (2 hinges): 110 lbs, 36" width (49.9 kg, 914.4 mm)

• Maximum Door Capacity (3 hinges): 140 lbs, 36" width (63.5 kg, 914.4 mm)

• Hinge Plate Width: 2-1/4" (57.15 mm)

• Hinge Plate Height: 3-15/16" (100.01 mm)

• Self-Centering: At 25 degree from the closed position. Equipped with a reversible 5-degree pivot pin.

• Material: Solid Brass

• For Use With: Tempered glass only

• Includes: Screws and gaskets

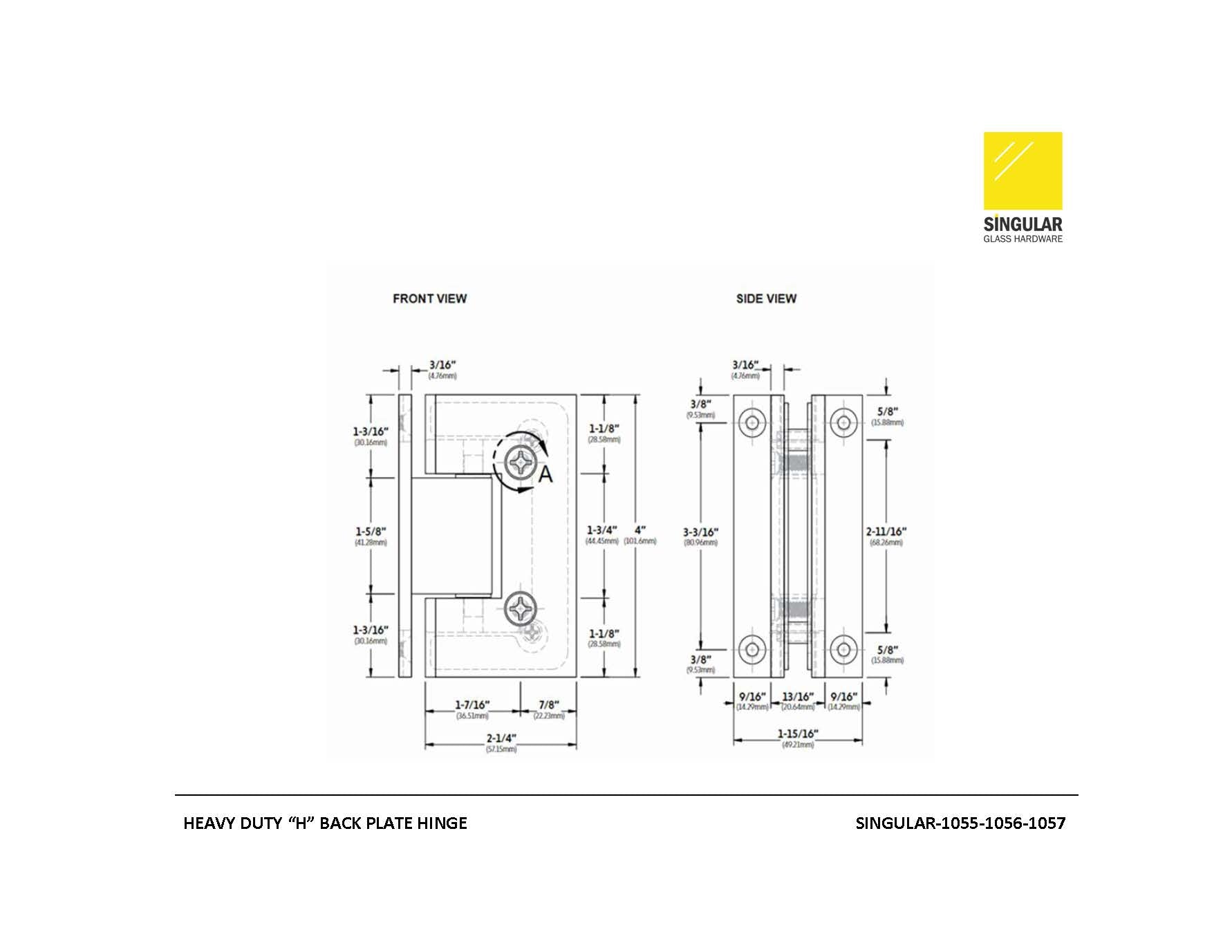

Download Technical Drawings
