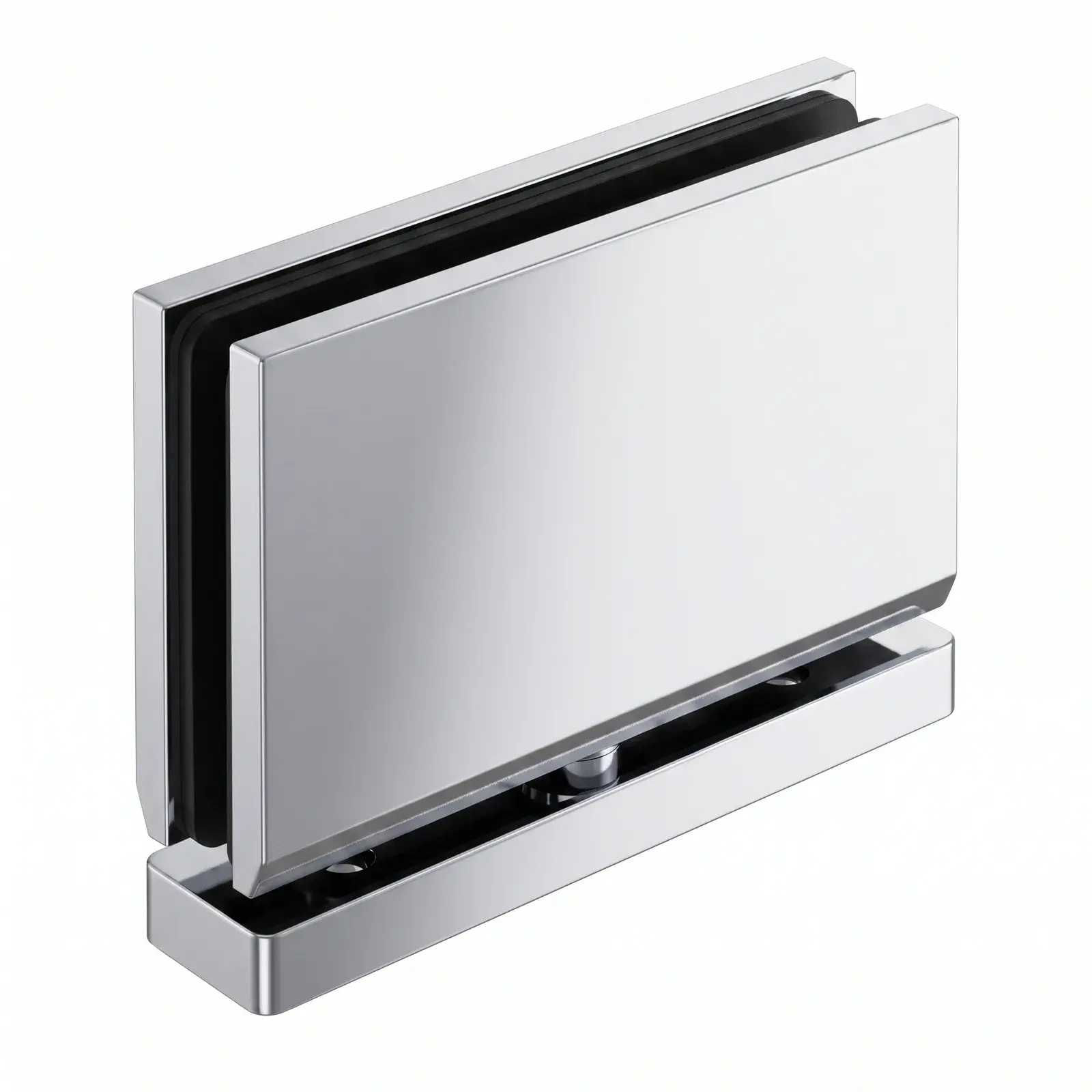

Heavy-Duty Top and Bottom Pivot Hinge
Specifications:
Weight: 3.15 lbs
Package Size: 5.125 × 4.4 × 1.75 inches
For Glass Thickness: 3/8" (10 mm) – 1/2" (12 mm)
Maximum Door Capacity (2 hinges): 145 lbs, 36" width (65.7 kg, 914.4 mm)
Self-Closing: Self-centering from 15 degree of the closed position
Material: Solid forged brass
For Use With: Tempered glass only
Includes: Screws and gaskets

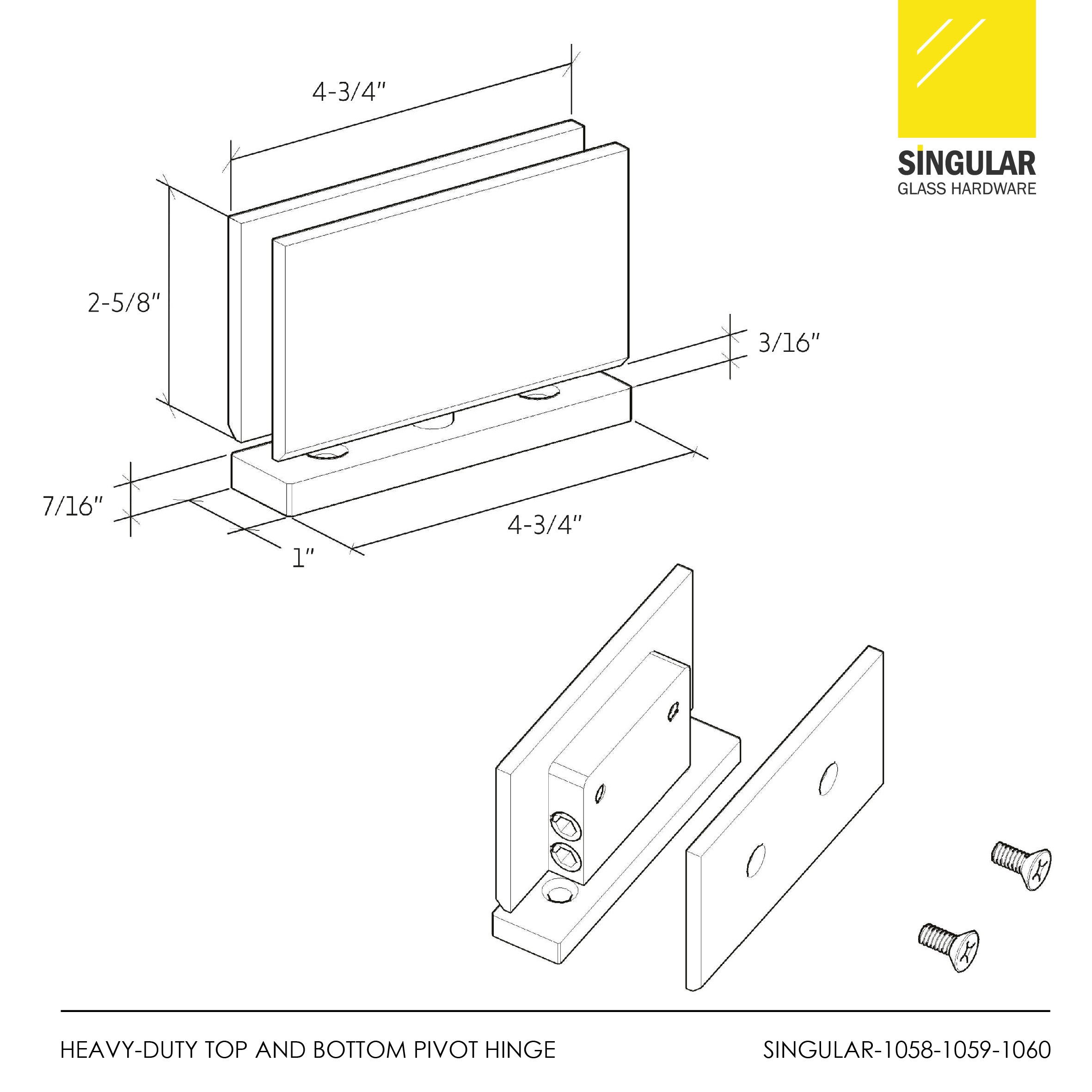

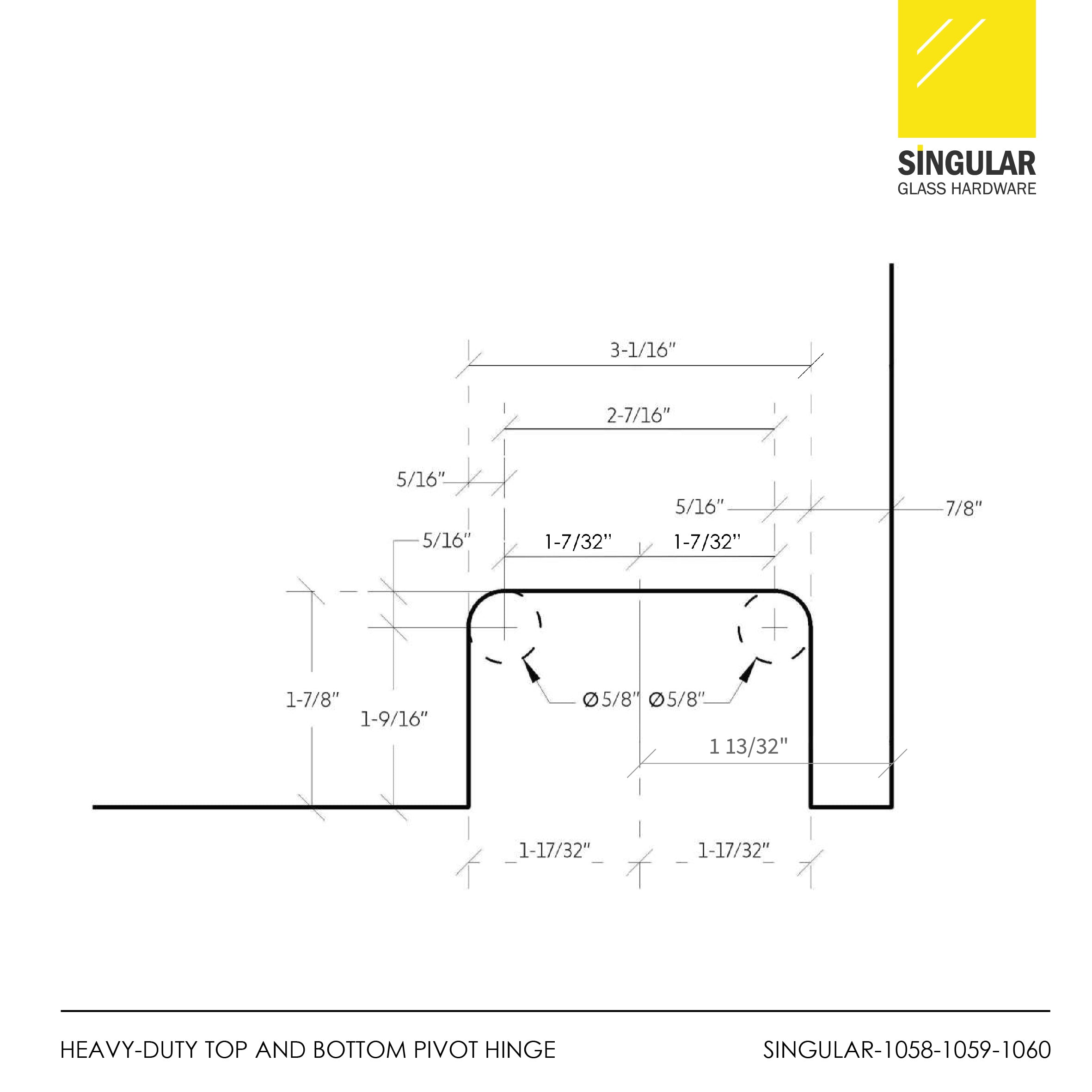

Download Technical Drawings
