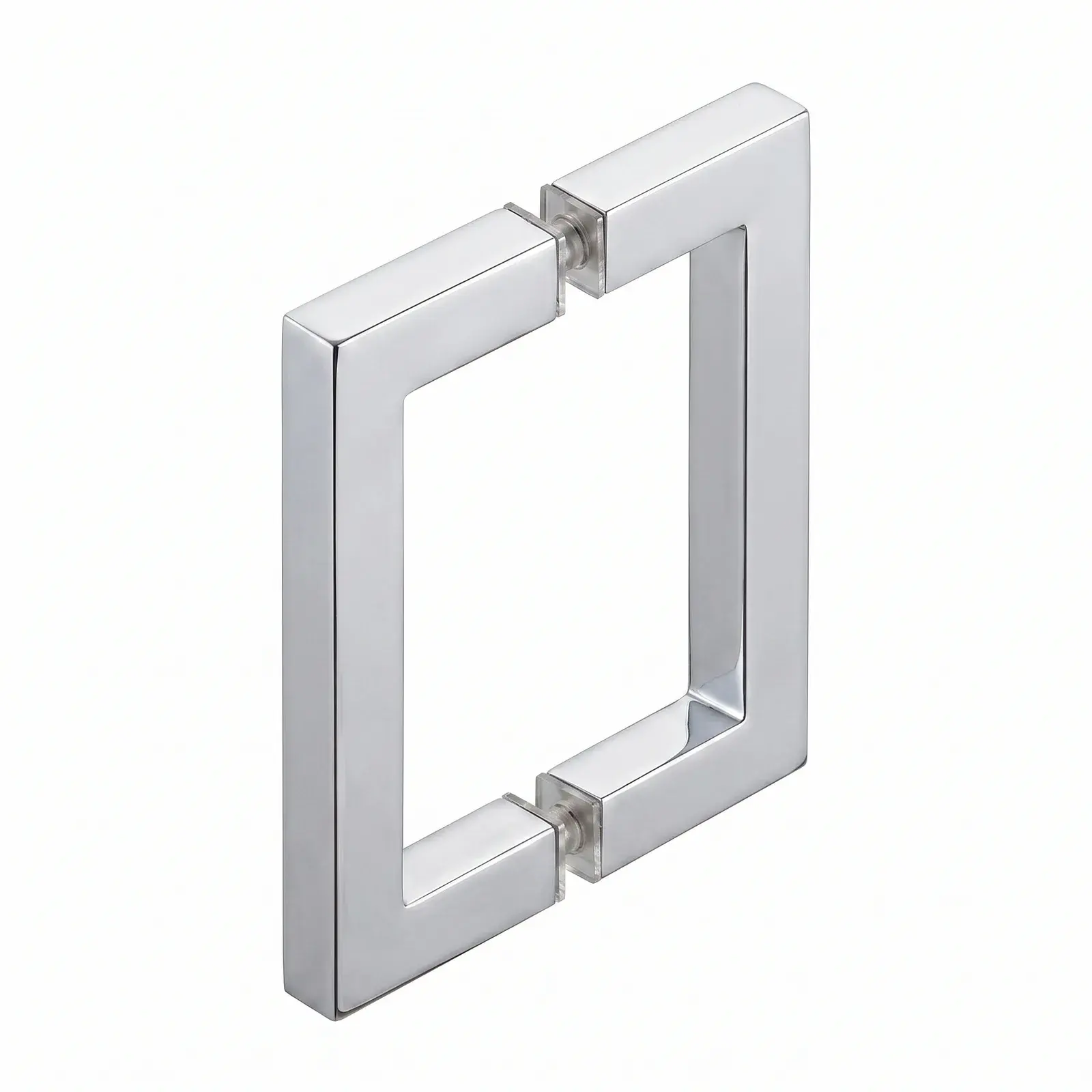

6" Square Handle
Back to back fixing, without metal washer,with hard plastic washer
Specifications:
Weight: 0.91 lb
Pkg Size: 7.48 × 5.43 × 1.37 in
For glass thickness: 5/16" (8mm) - 1/2" (12mm)
Glass Fabrication: Two 1/2" (12mm) diameter holes requered
Self-Centering: 6" (152.4 mm)
Tubing Diameter: 4/5" (20 mm)
304 Stainless Steel
Only for use on tempered glass
Screws and Gaskets include.

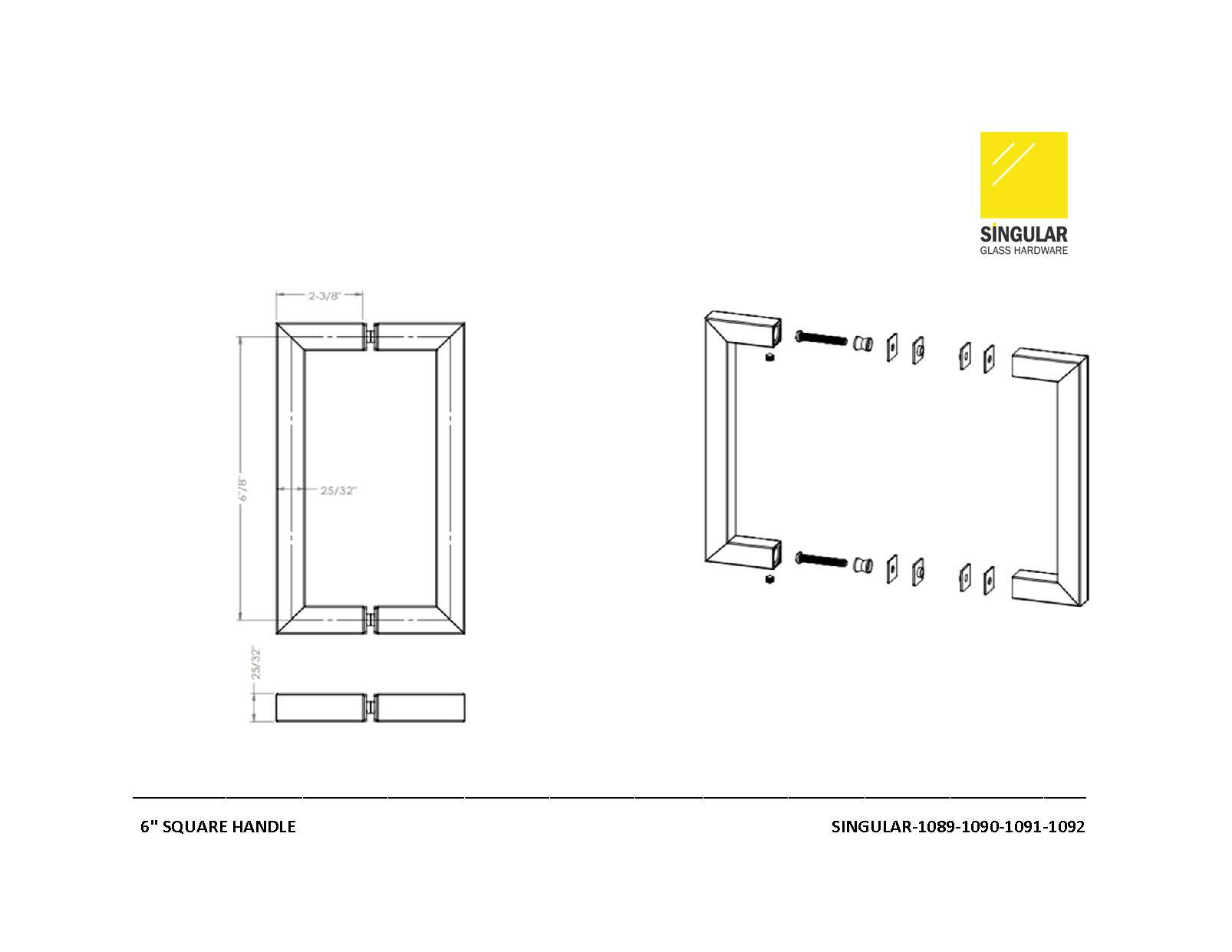

Download Technical Drawings
